Solenoid coil 8/22
Shako 40-17-01
- High temperature resistant thermoplastic contains 30% PC.
- width 22mm rated power 4.8 watts 4.9VA
- Brass winding H class heat resistant up to 200℃ according to IEC317-8.
- Built-in magnetic yoke made by low carbon magnet.
- suitable for BM520, PU520, PS520, PU320, PU322, CY520, SPU520, PU220-AR-01/02 series.
- Nass Magnet system 8/22, connexion 22001 series

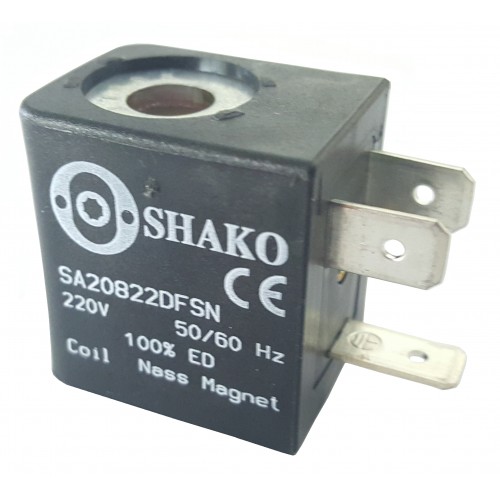

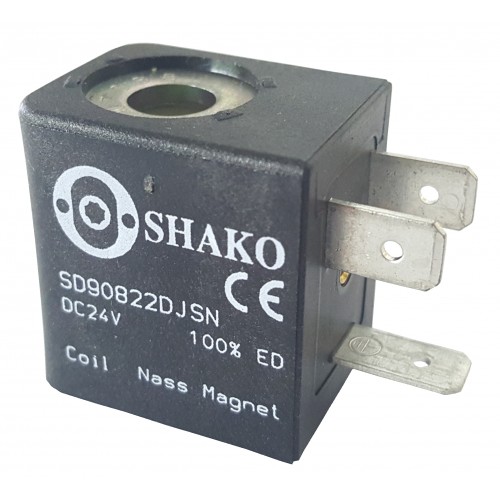

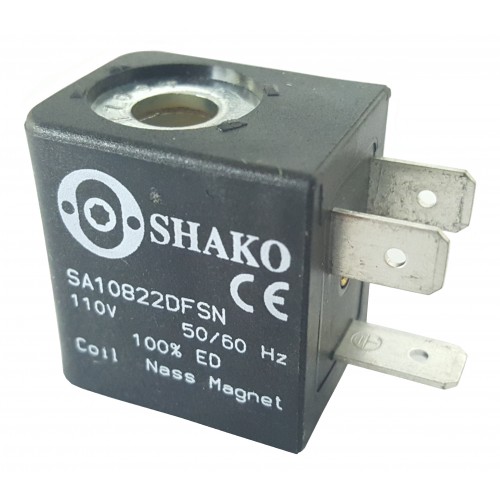

Available voltages include, 220vAC SA20822DFSN standard 6VA, 110vAC SA10822DFSN standard 6VA, 24vDC SD90822DJSN standard 4.8 watt, 24vAC SA90822DHSN option 8.5VA, 220vAC SA20822DHSN option 8.5VA, 110vAC SA10822DHSN option 8.5VA, 380vAC SA30822DHSN option 8.5VA.

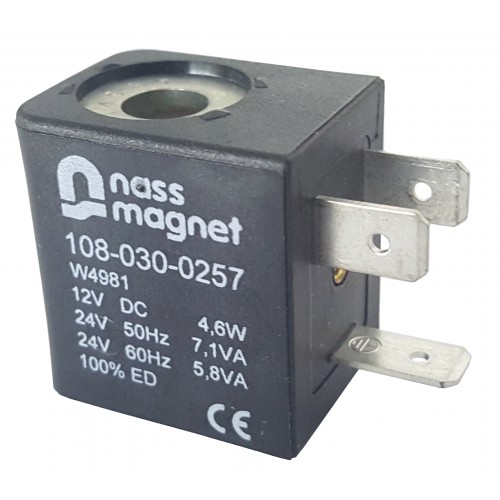

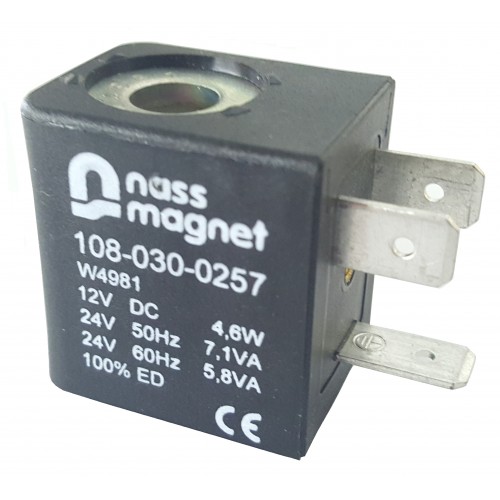

Older part numbers: 880522 24vdc 5 watts, 520404 12vDC 4.6Watts and 24v 50Hz 7.1VA and 24v 60Hz 5.8VA.
Shako Solenoid Coil 40-17-01
- Brand: Shako
- Product Code: 40-17-01
- Availability: In Stock
-
£5.05
Available Options

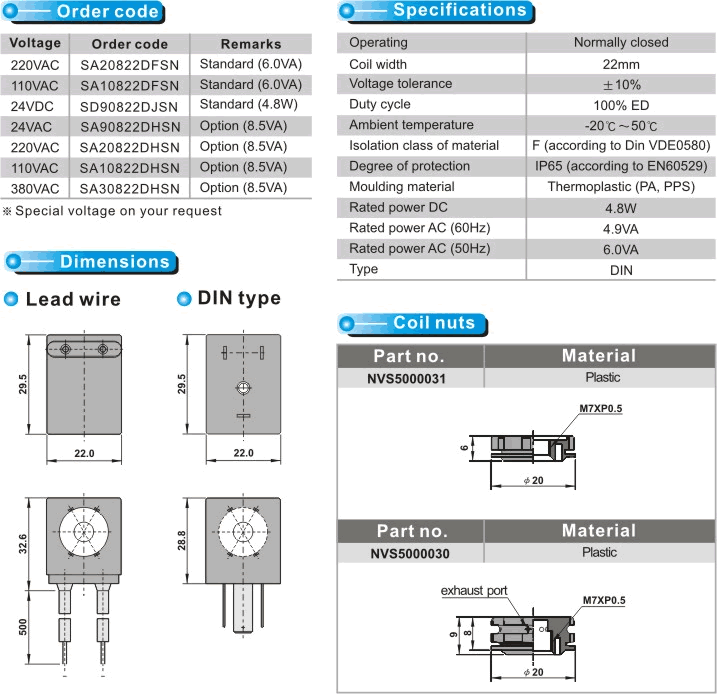

Please Check Shako Data Sheet Tab for options
