Namur Pilot Solenoid Valve 5/2 & 3/2
Shako CY525-02-S CY525-02-D
- 3/2 or 5/2 way switch gasket attached on the valve.
- 1/4" BSP or NPT thread with Namur mounting holes for easy installation on the single or double acting air actuator.
- Pressure 1.5 to 8 bar, pressure tested to 10 bar.

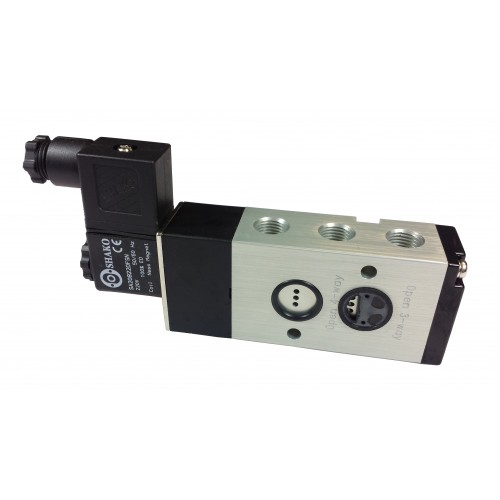

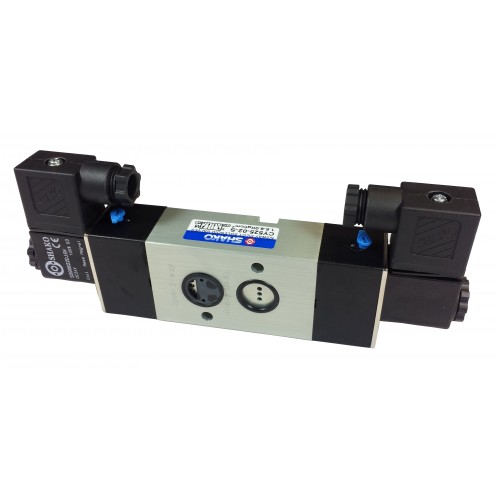

- CY525S single solenoid or CY525D double solenoid.
- Lock able manual override for easy operation.
- Big sectional area high flow rate.
- Anodized aluminium body and strict quality control provide a long durability.
- IP65 Class F 100% duty rated DIN43650A or flying lead wire coil with option for LED, option ATEX 22mm or 30mm EExmIIT4 coil or 36mm CSA certified coil.
- Temperature range ambient -10C to +50C.
Shako 3/2 5/2 Pilot Solenoid Valve CY525
- Brand: Shako
- Product Code: CY525
- Availability: In Stock
-
£24.20
Available Options

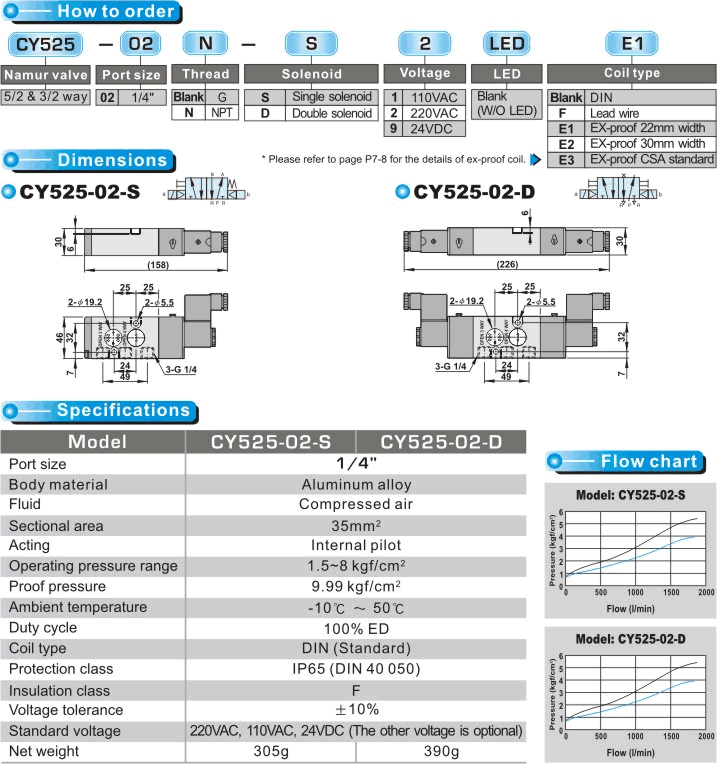

Please Check Shako Data Sheet Tab for options
