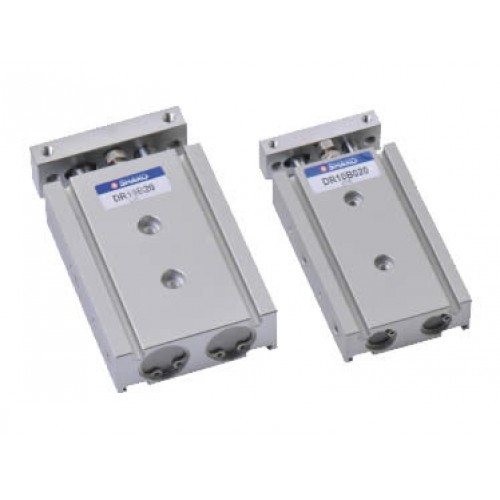

Double Rod Pneumatic Cylinder
Shako DR-10 DR-16 DR-20 DR-25
- Hard anodized aluminium body provides corrosion and wear resistance.
- Miniature size and double acting force.
- One air source supplies two piston rods.
- Simple maintenance and installation.
- Adjustable stroke range: 0 to -5mm.
- Work can be mounted on two direction.
- Bore sizes 10, 16, 20 and 25mm, stroke 10mm through to 200mm.
- Option for square or round sensor.
- Pressure range 1 to 8 bar, 10 bar maximum.
- Temperature range -5C to +60C
Double Rod Pneumatic Cylinder DR
- Brand: Shako
- Product Code: DR-10-16-20-25
- Availability: In Stock
-
£39.60
Available Options

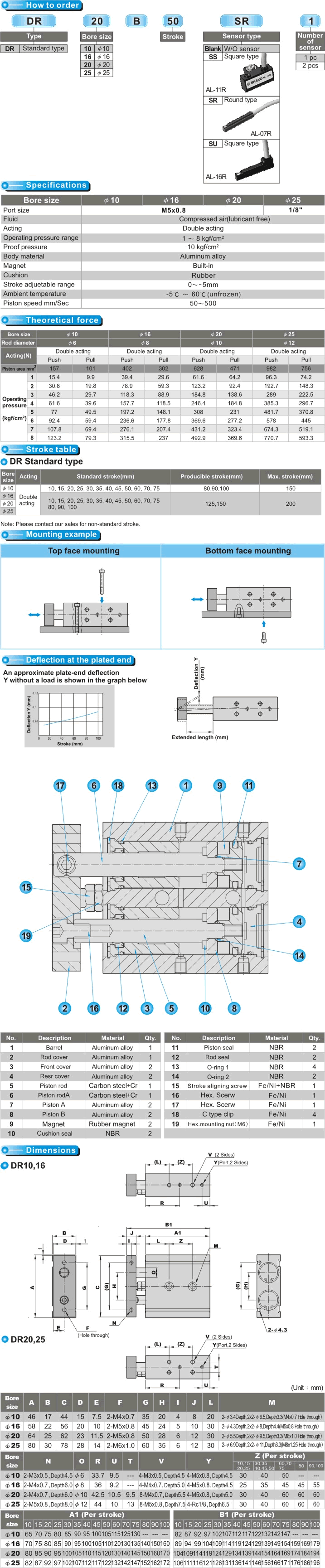

Please Check Shako Data Sheet Tab for options
