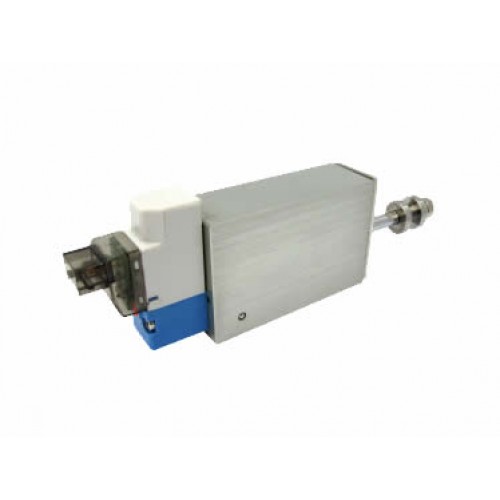

High Speed Pneumatic Cylinder
Shako HCV1-CU09009-0015
- Aluminium alloy body provides corrosion and wear resistance as well as long life cycle.
- Compact size and space saving.
- Fast acting 6Hz pneumatic cylinder, stroke 15mm, bore 10mm.
- Attached with low power consumption (0.8W) 10mm solenoid valve.
- single acting spring return.
- Stroke tolerance +/- 1mm
- Maximum operating air pressure 1.5 to 8 bar (0.15 to 0.8 Mpa)
- Rubber cushion
- Temperature range -5C to +50C (without freezing).
- Piston speed 50 to 500mm a second.
Shako High Speed Pneumatic Cylinder HCV1
- Brand: Shako
- Product Code: HCV1
- Availability: In Stock
-
£55.66
Available Options
Please Check Shako Data Sheet Tab for options
