Pneumatic JIG Cylinder
Shako JC-12-16-20-25-32-40
- 12,16,20,25,32 & 50mm bore.
- Hard anodized aluminium barrel provides corrosion and wear resistance as well as long life.
- Compact size and space saving.
- Strict quality control ensures the product in stability and excellent performance.
- Simple maintenance and installation.
- Stoke 5 to 50mm.
- Various sensor switches are available.
- Standard double acting, single acting spring extended, stroke adjustment 25mm, stroke adjustable 50mm and double rod double acting.
- Optional 63, 80 or 100mm bore available upon request.
- Pressure range 1 to 9 bar, max operating air pressure 9.5 bar.
- Temperature range ambient -5C to + 60C.
- Piston speed 50 to 500 mm per second double acting up to 40mm bore.
- Compact cylinder.
JIG Compact Cylinder double acting 12-40mm JC
- Brand: Shako
- Product Code: JC-12-16-20-25-32-40
- Availability: In Stock
-
£12.84
Available Options

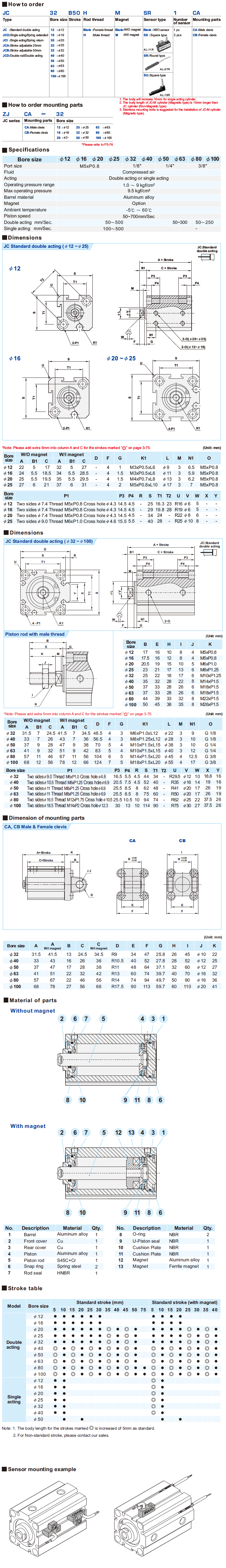

Please Check Shako Data Sheet Tab for options
