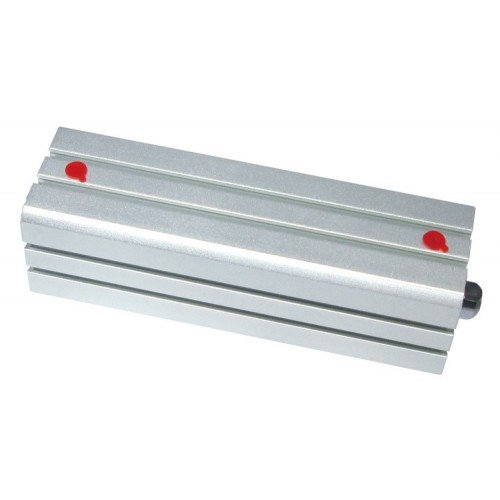

JIG Cylinder
Shako JQ-20-25-32-40-50
- Compact double acting cylinder.
- Bore 20,25,32,40 or 50mm.
- Stroke 5 to 100 mm.
- Magnet included.
- Hard anodized aluminium barrel provides corrosion and wear resistance as well as long life.
- Compact size and space saving.
- Strict quality control ensures the product in stability and excellent performance.
- Simple maintenance and installation.
- custom bore sizes and strokes available.
- Various sensor switches are available.
- Pressure 1 to 9 bar, maximum operating pressure 9.5 bar.
- Complete with cushion plate.
- Speed double acting 50 - 500 mm per second.
Pneumatic JIG Cylinder double acting JQ
- Brand: Shako
- Product Code: JQ
- Availability: In Stock
-
£16.50
Available Options
Please Check Shako Data Sheet Tab for options
