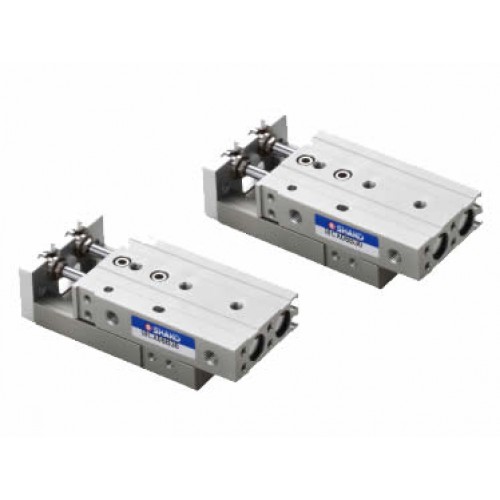

Double Rod Pneumatic Slide Cylinder
Shako MCX-06 MCX-08
- Integration of working table and cylinder body, suitable for precision assembly line.
- Sensor groove design on cylinder body for saving space.
- Built-in Magnet
- Bore sizes 6mm or 8mm
- Stroke 10, 20, 30, 40, 50 or 75mm.
- Double acting with option for sensor switch.
- Piston speed 50 to 500mm per second.
- Pressure range 1.5 to 7 bar, maximum operating air pressure 10 bar.
Double Rod Pneumatic Slide Cylinder MCX
- Brand: Shako
- Product Code: MCX
- Availability: In Stock
-
£191.59
Available Options

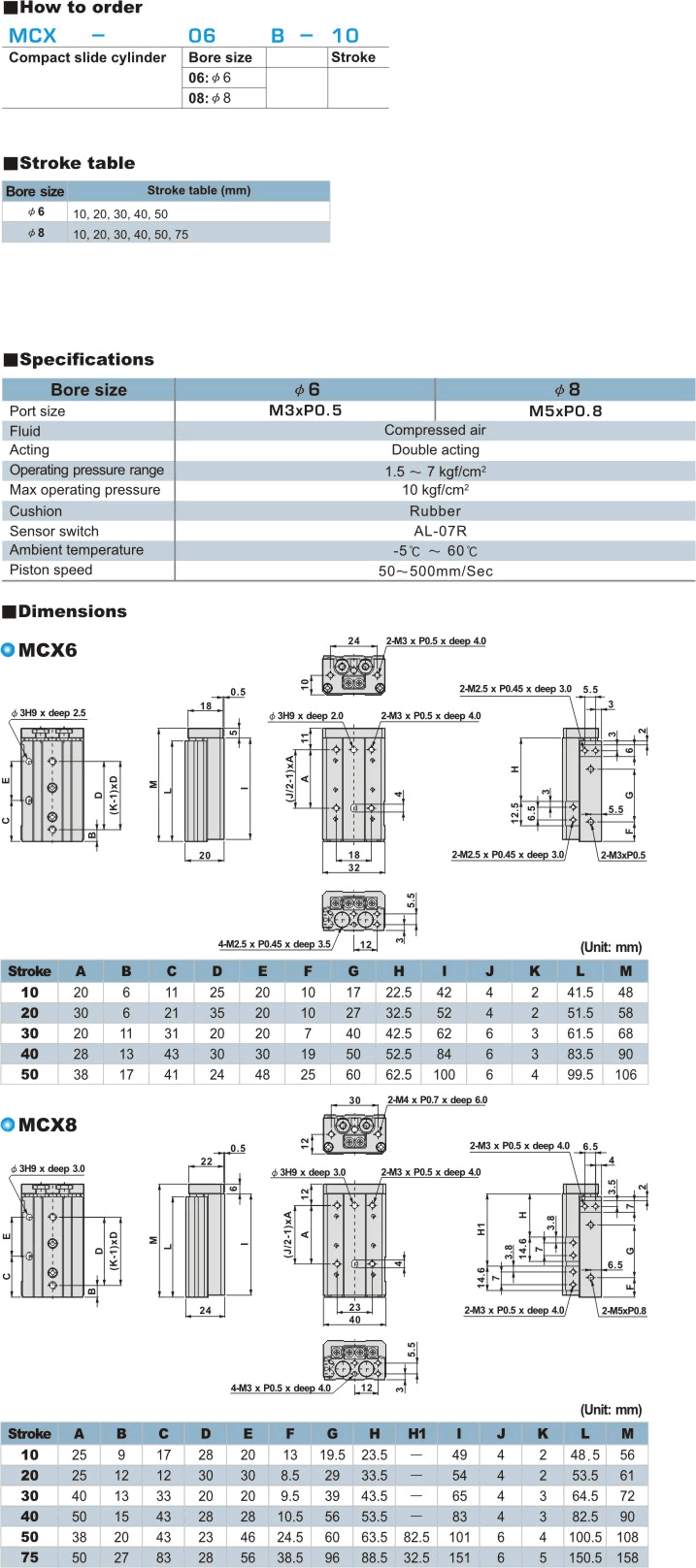

Please Check Shako Data Sheet Tab for options
