• Shako 5/2 Pilot Solenoid Valve PM521-M3

Pilot Solenoid Valve 5/2 Way

Shako PM521-M3-S(D)

  • Port M3 body ported or manifold mounted 2 to 10 stations.
  • Single PM521S or double acting PM521D.
  • 10mm compact 5/2 way solenoid valve
  • Pressure 1 to 7 bar, test pressure 8 bar.
  • Fast acting 500 cycles per minute, low starting pressure.
  • Plug with standard JPC design (with LED) for coil, simple installation.
  • Miniature and Compact size, large flow rate.
  • Anodized aluminium body and strict quality control provide a long durability.
  • Low power consumption 0.65W with LED.
  • Voltage options 6vdc, 12vdc or 24vdc, coil class F JPC 100% duty rated.
  • Temperature ambient -10C to +60C.


Write a review

Please login or register to review

Shako 5/2 Pilot Solenoid Valve PM521-M3

  • Brand: Shako
  • Product Code: PM521
  • Availability: In Stock
  • £35.54


Available Options

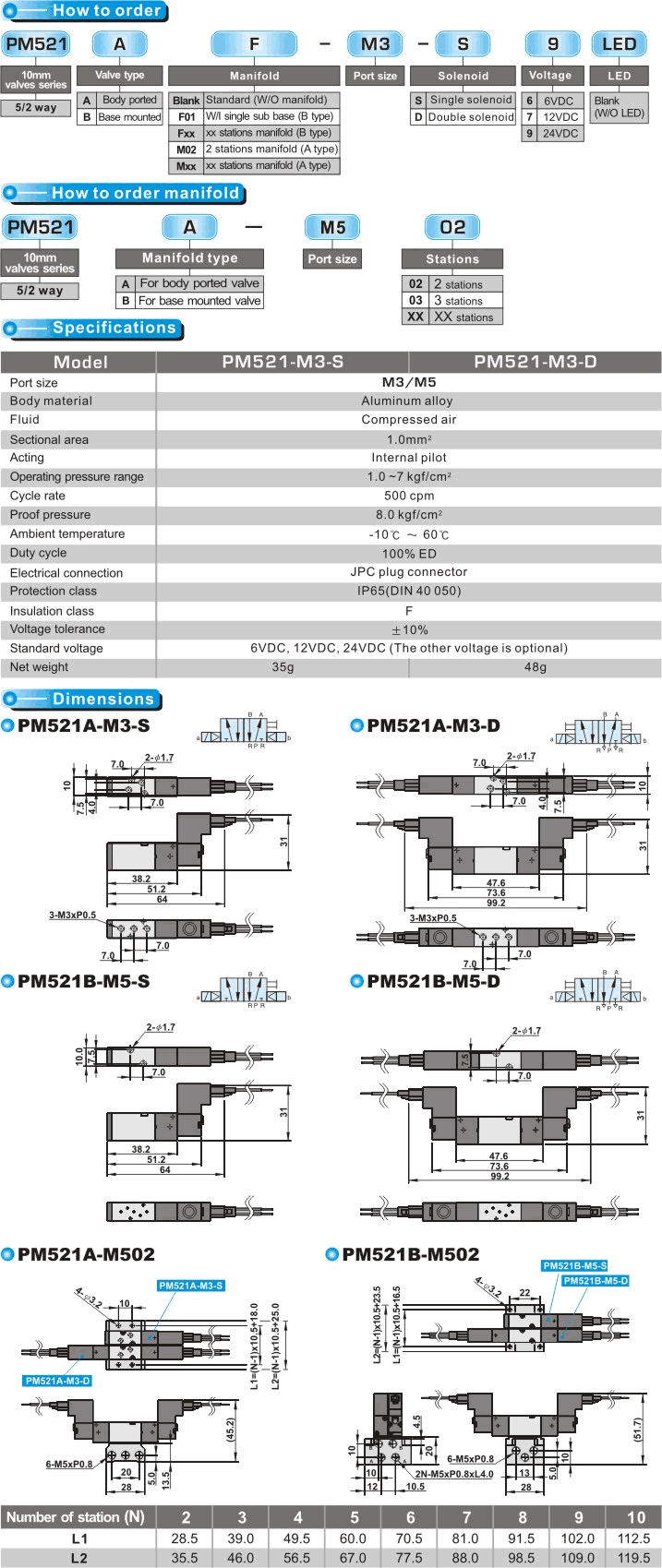

Please Check Shako Data Sheet Tab for options
