Miniature Pneumatic Cylinder
Shako PMA-16-20-25-32-40
- Bore 16, 20, 25, 32 or 40mm
- Standard or boss cut miniature stainless cylinder.
- Caps are rolled and polished, which provides stable quality.
- Stainless steel SUS304 barrel provides stable movement and features high quality and durable life.
- Stainless steel SUS304 barrel features corrosion resistance and strongly mechanical strength.
- Built in magnet for sensor use.
- Double acting.
- Pressure 1.5 to 8.5 bar, max pressure 9.5 bar.
- Temperature range ambient -5C to +60C.
- Piston speed 50 to 700mm per second.
- Optional PMAA stroke adjustable 25mm add 35% to PMA price.
- Optional PMAB stroke adjustable 50mm add 40% to PMA price.
- Special stroke or rod thread add 10% to PMA price.
Double Acting Miniature Stainless Cylinder PMA16~40
- Brand: Shako
- Product Code: PMA
- Availability: In Stock
-
£17.79
Available Options

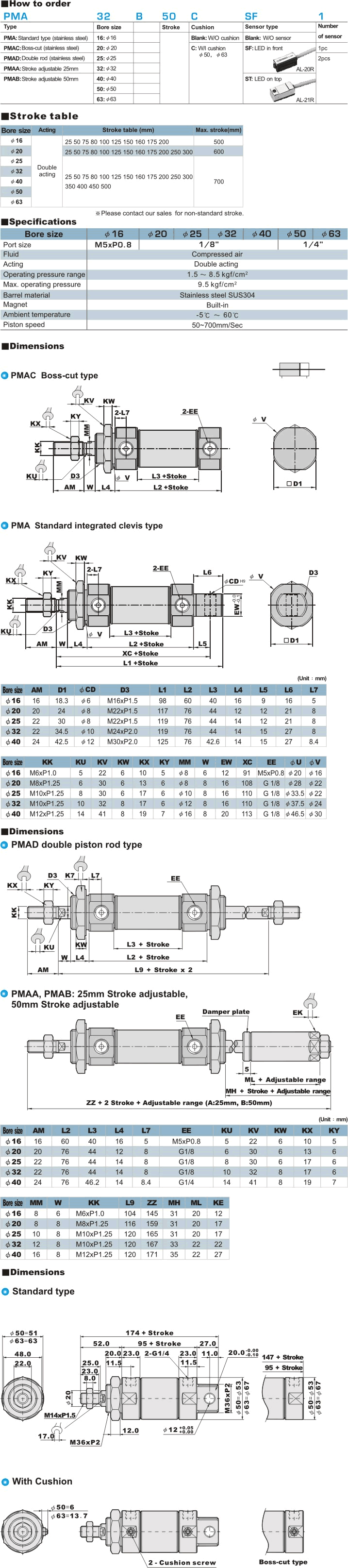

Please Check Shako Data Sheet Tab for options
Related Products
Double Acting 32mm ISO6431 standard cylinder IC32
ISO15552 Standard CylinderShako IC-32 Identical to ISO6431 standard.32mm boreDouble acting.Stro..
£36.66

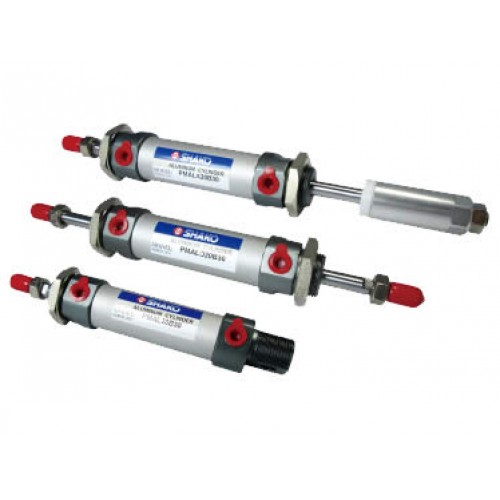

Miniature Aluminium Pneumatic Cylinder PMAL
