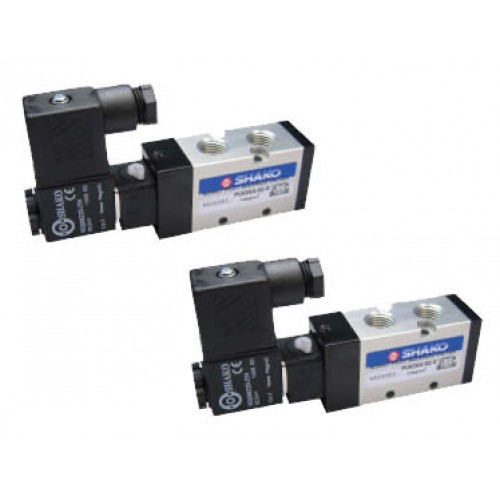

• Shako 5/2 External Pilot Solenoid Valve PU520A

External Pilot Solenoid Valve 5/2 Way

Shako PU520A-02-S PU520AB-02-S

  • Port size 1/4" BSP or NPT thread, air pilot port M5.
  • Pressure range 0 to 8 bar, 10 bar maximum.
  • Medium size, 26mm width, large flow rate.
  • Single or double acting
  • Lockable manual override for easy operation.
  • Anodized aluminium body and strict quality control provide a long durability.
  • External pilot is available for vacuum equipments.
  • Suitable for manifold part no. MF520-02-XX.
  • Option front air pilot or front and rear air pilot.
  • Most voltages available, DIN or lead wire IP65 100% duty coil, option ATEX EExmIIT4 or Ex CSA approved coil.


Write a review

Please login or register to review

Shako 5/2 External Pilot Solenoid Valve PU520A

  • Brand: Shako
  • Product Code: PU520A
  • Availability: In Stock
  • £3.03


Available Options

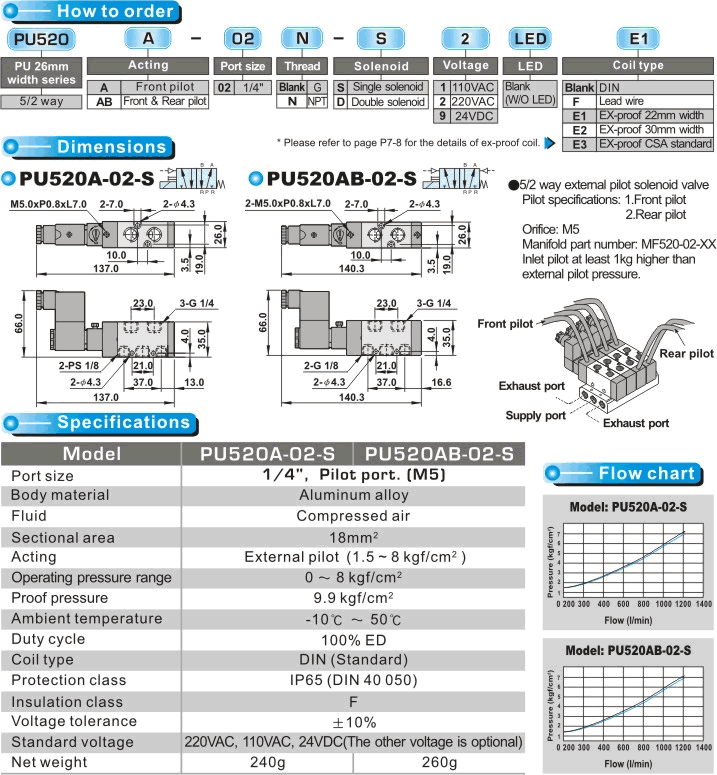

Please Check Shako Data Sheet Tab for options
