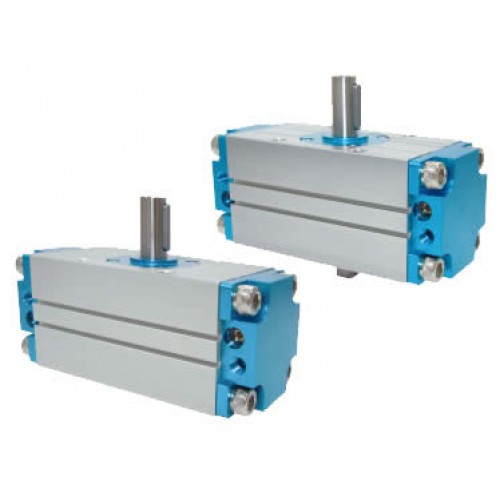

Pneumatic Rotary Cylinder
Shako RCA-63 RCAD-63
- Simple operation, double acting
- Hard anodized aluminium body for wear and corrosion resistance
- Rack and pinion made of carbon steel, provide a strong mechanism
- Air valve actuator 90 or 180 degree rotation, with air cushion included, +/- 4 degrees.
- Sensor with or without round or square sensor.
- Construction strong robust aluminium alloy 6061T6.
- Port size for compressed air inlet 1/8".
- Shaft diameter 17mm.
- Pressure range 1 to 10 bar.
- Temperature range ambient -10C to +60C.
Shako Rotary Cylinder RCA RCD
- Brand: Shako
- Product Code: RCA RCAD
- Availability: In Stock
-
£436.34
Available Options
Please Check Shako Data Sheet Tab for options
