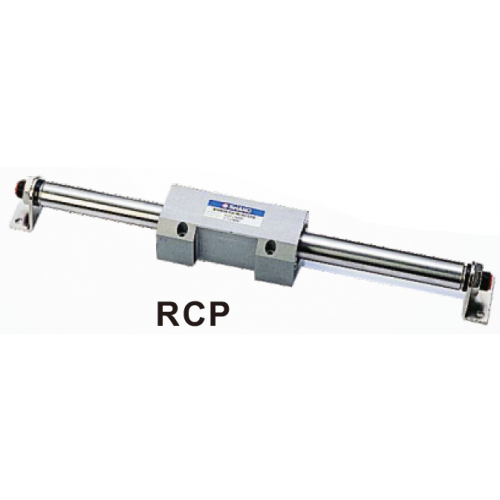

Rodless Mono block Magnetic Cylinder
Shako RCP-20-25-32
- RCP mono block type
- Bush bearing for slow moving heavy loads.
- Bore 20, 25 or 32mm
- Stroke 100 to 2000mm.
- Double acting.
- Utilize a special magnetic device to move cylinder body instead of piston rod acting, so the length of cylinder is 50% shorter than standard cylinder.
- The piston in magnetic device is sealed by stainless steel tube which is completely isolated from cylinder body, ensuring leakage free and long life.
- Moving magnetically provides stable quality, accuracy, and vibration free.
- Automation quality test ensures excellent performance.
- Simple installation and maintenance.
- Operating pressure range 2 to 7 bar, maximum pressure 10.5 bar.
- Temperature range 0C to +60C.
Rodless Pneumatic Magnetic Cylinder
- Brand: Shako
- Product Code: RCP
- Availability: In Stock
-
£356.64
Available Options

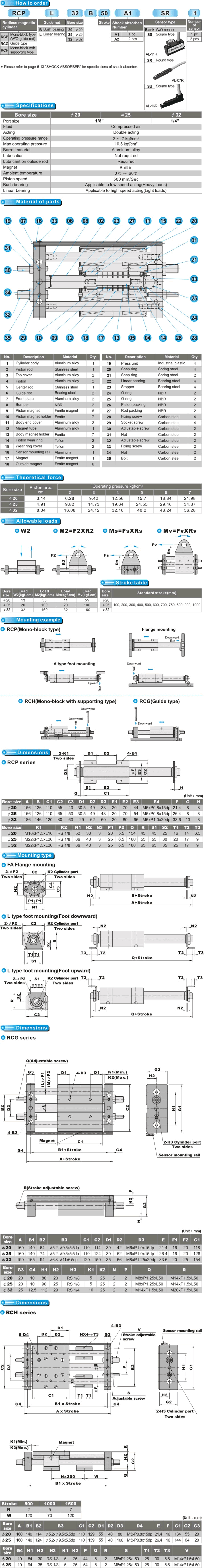

Please Check Shako Data Sheet Tab for options
