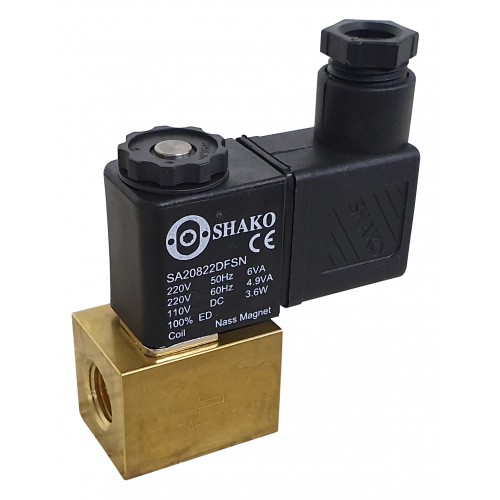

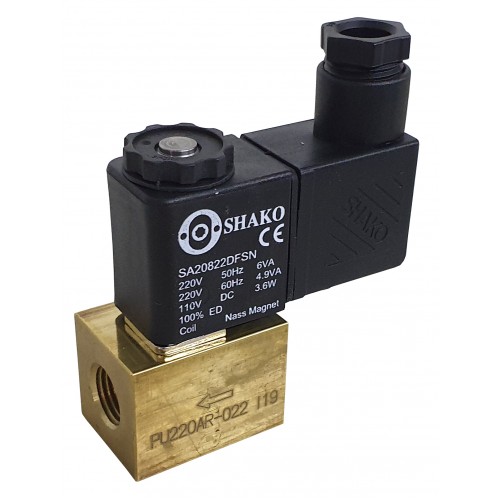

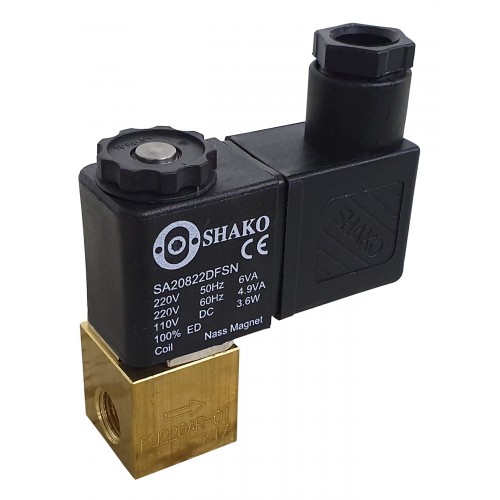

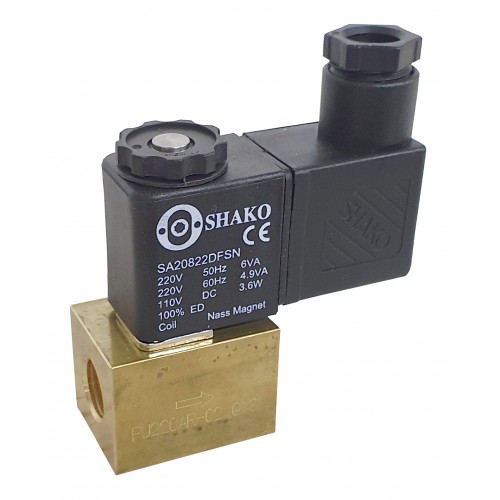

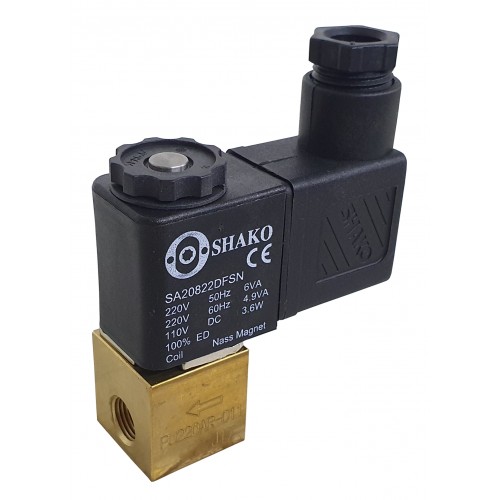

Miniature Solenoid Valve 2/2 Way
Shako PU220AR-01-02-03
- 1/8, 1/4 or 3/8" BSP or NPT thread
- NBR seals, optional Viton and EPDM sealing.
- 2/2 way, normally closed, quick response.
- Pressure Standard 8.5 Bar, Medium 16 Bar or High 20 Bar (1/8 + 1/4) with AC coil
- Pressure tested to 30 bar.
- Direct acting 1/8, 1/4 and assisted lift 3/8".
- Compact miniature 2 way solenoid valve.
- Most voltages available.
- Temperature media -10C to +90C, ambient -10C to +60C.
- Coil class F, DIN43650B or flying lead wire 100% duty rated, option ATEX EExmIIT4 coil.
- Brass body with stainless steel internals extend valve.
- NBR seals suited for air, water, neutral gases and mineral oils - Viton seals fuel oil, petrol, hi-test petrol, diesel fuel - EPDM hot water and liquid detergents.
Shako 2/2 Solenoid Valve PU220AR
- Brand: Shako
- Product Code: PU220AR
- Availability: In Stock
-
£27.89
Available Options
Please Check Shako Data Sheet Tab for options
