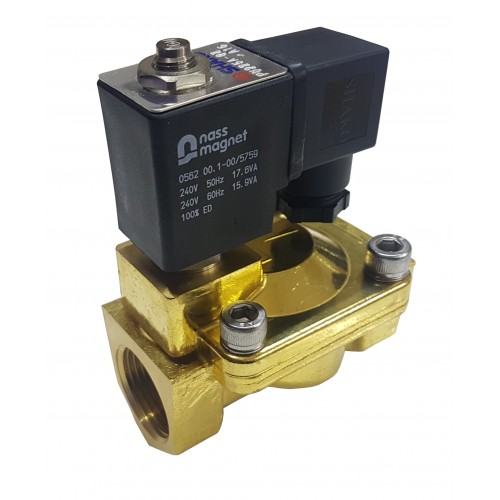

-500x500.jpg "Shako 2/2 Solenoid Valve PU225A")

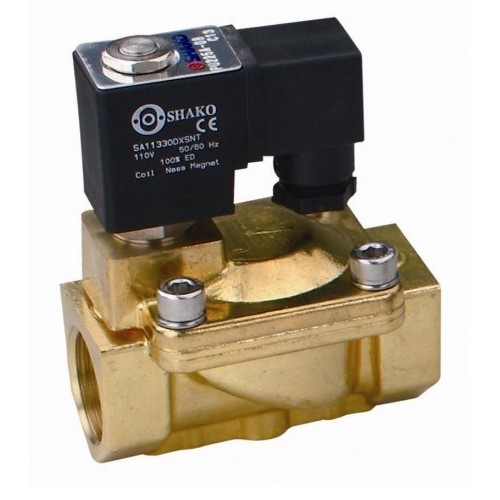

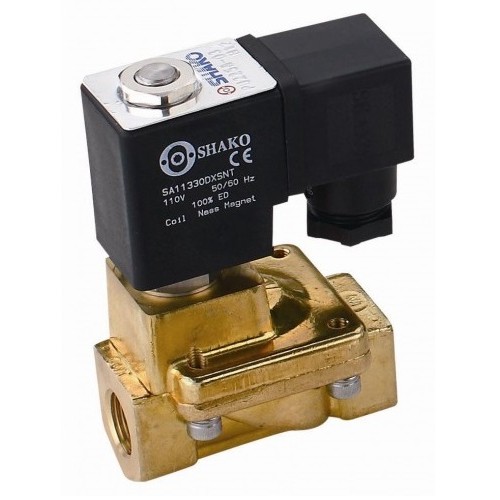

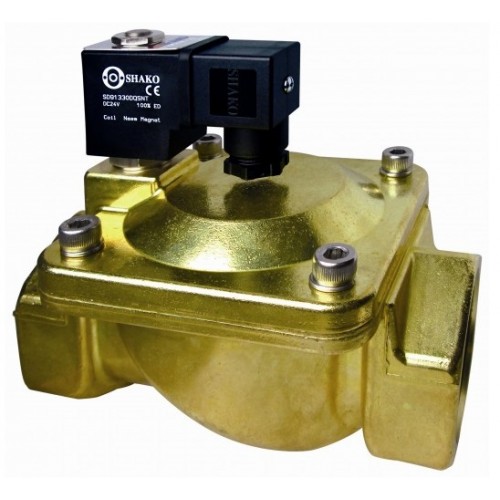

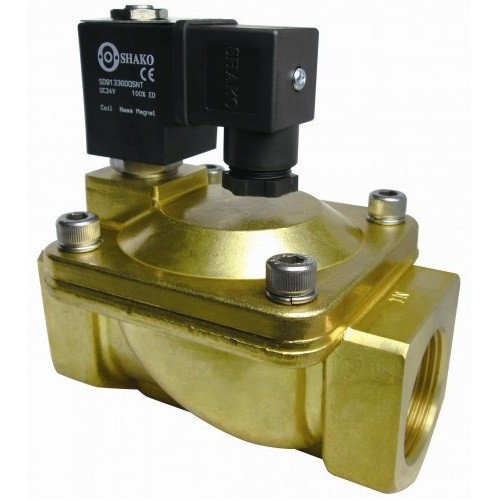

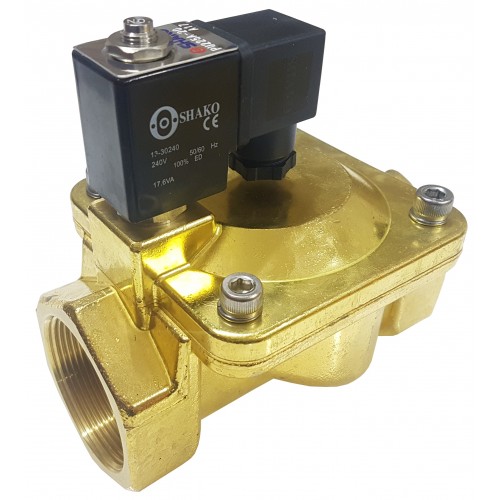

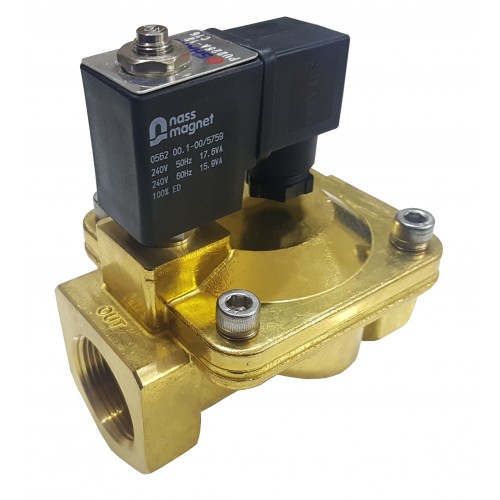

Brass Solenoid Valve 2/2 Way
Shako PU225A(N)-03-04-06-08-12-14-20

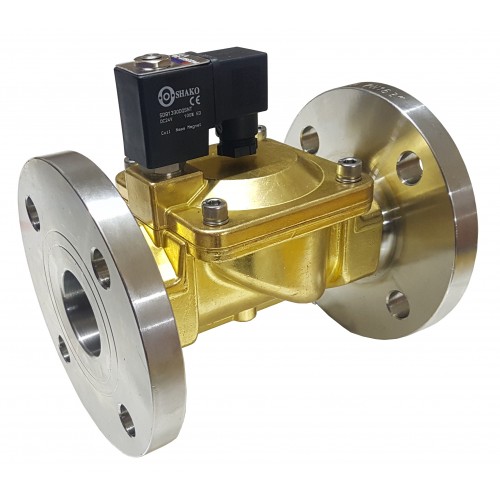

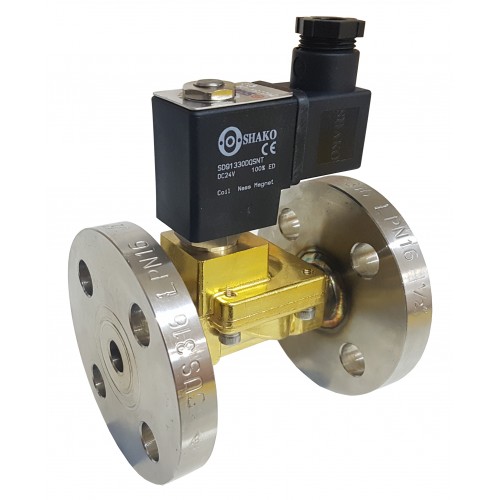

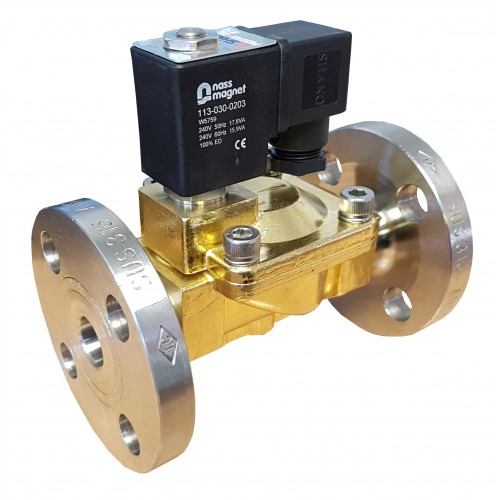

- Port thread 3/8, 1/2, 3/4, 1, 11/4, 11/2, 2" BSP/NPT or Flange (F) JIS10K, (F3) ANSI150Lb, (F4) PN16.
- Sealing NBR, EPDM or Viton.
- 0.5 to 10 bar differential, 15 bar maximum working.

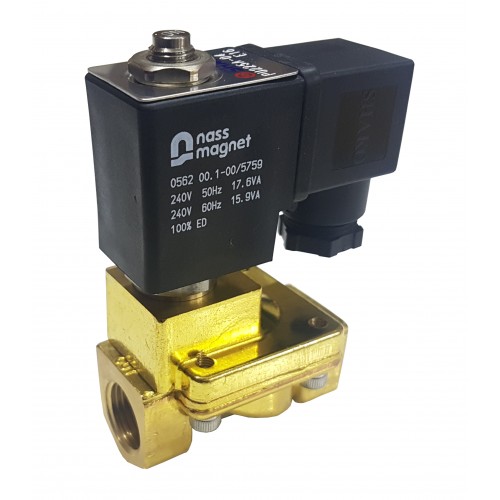

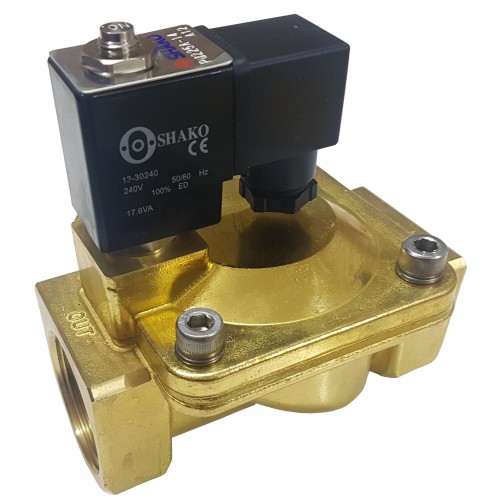

- PU225A 2/2 normally closed, PU225AN 2/2 normally open.
- Pilot acting for low starting pressure
- Large flow rate and high working pressure.
- Quick response.
- Stainless steel stem provides exceptional durability.
- CE conformity for all series.
- Most voltages available from 12v, 24volt, 48volt, 110volt, 230volt and 380 volt AC or DC, optional ATEX EExmIIT4 coil for zone 21 and 22 use.
- Suitable media NBR - air, water, neutral gases and mineral oils - Viton fuel oil, gasoline, hi-test gasoline and diesel fuels - EPDM hot water and liquid detergents.
Shako 2/2 Solenoid Valve PU225A
- Brand: Shako
- Product Code: PU225
- Availability: In Stock
-
£44.47
Available Options
Please Check Shako Data Sheet Tab for options
